Menu Options Defined:


When logged into the HardTrack Web Portal as an account administrator you are given extra options on the menu bar.







The menu bar will now have a "Setup" option that appears as well. Under the setup option you will see links for "Summary Report",  "HardTrack Setup",  "Dashboard Setup" and "Manage Outliers".  Please see the image below for more reference.



Summary Report:


This link allows the user to configure what items will be displayed on the Temperature Sensor Report page. Here are the items that are on the page and what they control:
  • Top Summary Chart Visible
    • The top summary table holds "snapshot" data for each sensor that is in the report. It is in the red box in the image below.
    • Yes means that the summary table will be shown. No means that it will NOT be shown.
  • Delta Temp Max Temp Minus Ambient Temp Visible
    • Controls whether or not the main table will show this delta value or not. It is in the yellow box in the image below.
    • Yes means that the delta temp will be shown. No means that it will NOT be shown.
  • Delta Temp Max Temp Minus Min Temp Visible
    • Controls whether or not the main table will show this delta value or not. It is in the orange box in the image below.
    • Yes means that the delta temp will be shown. No means that it will NOT be shown.
  • Delta Temp Inside Temp Visible
    • Controls whether or not the main table will show this delta value or not. It is in the blue box in the image below.
    • Yes means that the delta temp will be shown. No means that it will NOT be shown.

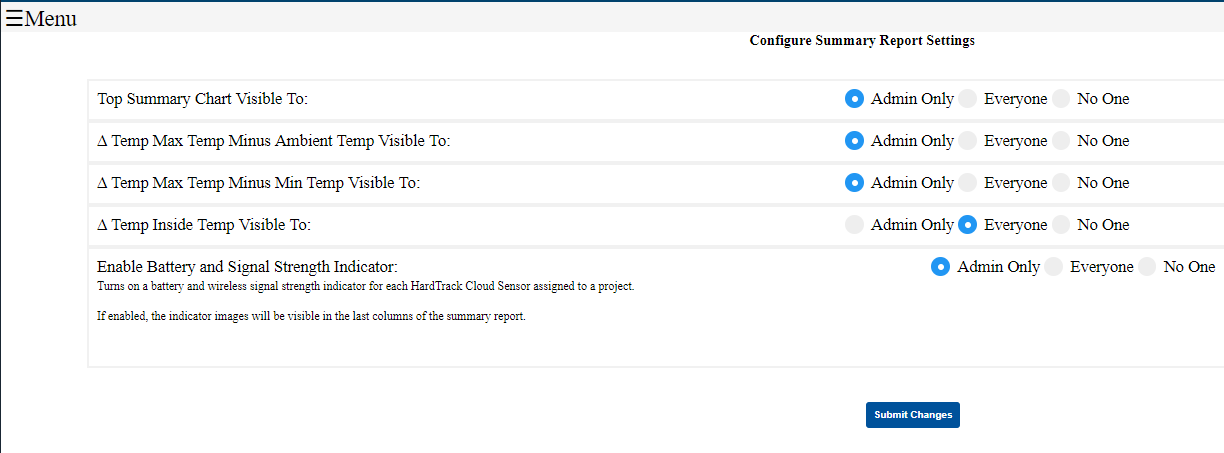

Above is an example of what the options look like on the screen. Simply make the changes that will reflect how you want the temperature sensor report to look and then click "Submit Changes" at the bottom of the screen.


You can add information regarding the Cloud Sensors to the Summary Report display, Battery power remaining and cellular signal strength





Here is the Summary Report with the Battery and Signal Strength enabled:



If you hover over the battery and signal strength images, the actual values will display.




HardTrack Setup:

This link allows the user to configure general settings that will have site wide affects. Here are the items that are on the page and what they control:
  • Enable Logging for All Pages
    • The top summary table holds "snapshot" data for each sensor that is in the report. It is in the red box in the image below.
    • Yes means that the summary table will be shown. No means that it will NOT be shown.
    • NOTE: This setting should only be turned on if someone from Wake's Customer Care team instructs you to do so.

Below is an example of what the options look like on the screen. Simply make the changes that will reflect how you want the HardTrack Web Portal to function and then click "Submit Changes" at the bottom of the screen.



Dashboard Setup:

This link allows the user to pick which projects to show or not to show on the HardTrack Dashboard. When the page loads, all of the currently active projects are selected and put on the screen. You can then decide who you would like to be able to see which project.

The "Admin Only" option means that only users that have admin access will be able to see this project when they log into the dashboard.
The "Everyone" option means that no matter what the users credentials are, they will be able to see the project when they log into the dashboard.
The "No One" option means that no matter what the users credentials are, they will NOT be able to see the project when they log into the dashboard.

Below is an example of what the options look like on the screen. Simply make the changes that will reflect projects you want to display to other users and then click "Submit Changes" at the bottom of the screen.



If the time required to monitor your pour is very long and you have many active pours occurring at the same time, in order to speed up performance of the Website, you can select a range of hours to display for the most recent information.  This will speed up the rendering of the charts on the website.  If you activate this feature, an "Full Chart" button will display below each pour/project's chart:

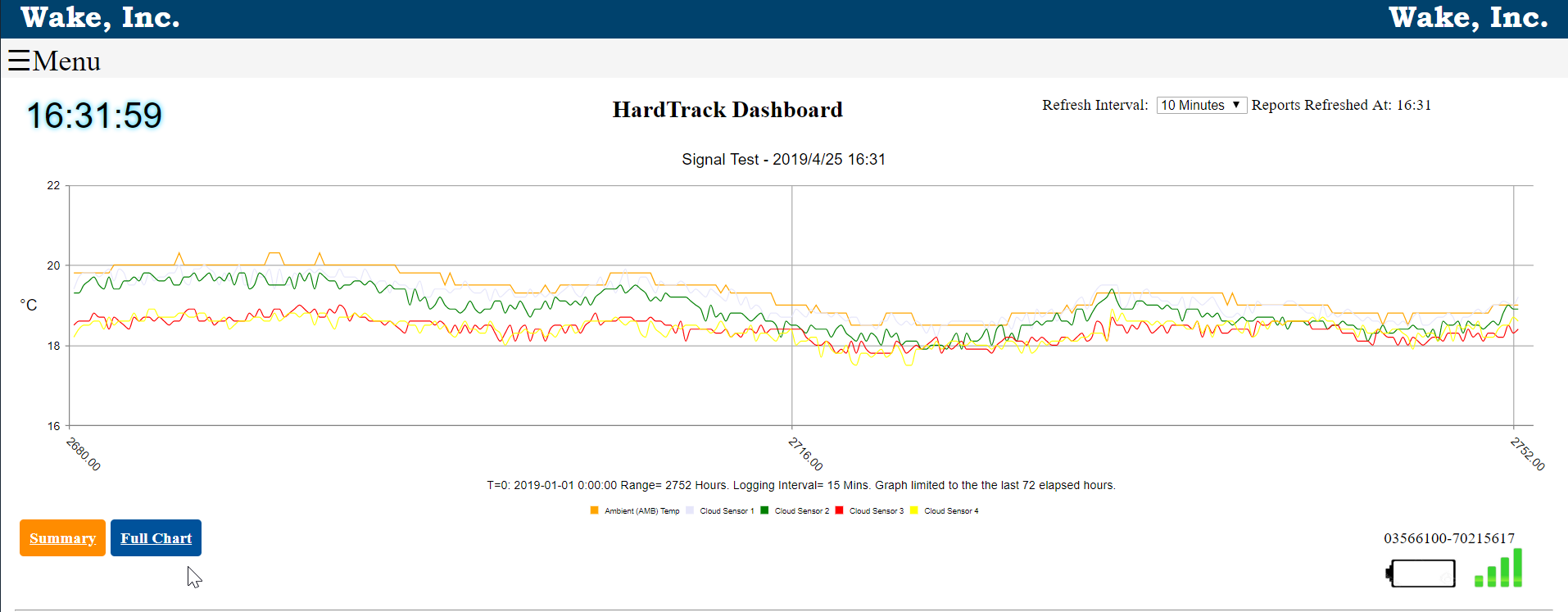

To view the entire chart for a project, click the Full Chart button:


Just as you have on the Summary Report, you can activate the displaying of the Battery and Signal Strength.  On the Dashboard, the Battery and Signal Strength displayed, is the last known value from the last time information was uploaded from the device(s) to the cloud:


If you hover over the battery and signal strength images, the exact values will display.


Manage Outliers:

If you would like to suppress the displaying of an odd temperature reading, perhaps caused when a cable was broken, you can do this with the Manage Outliers feature.

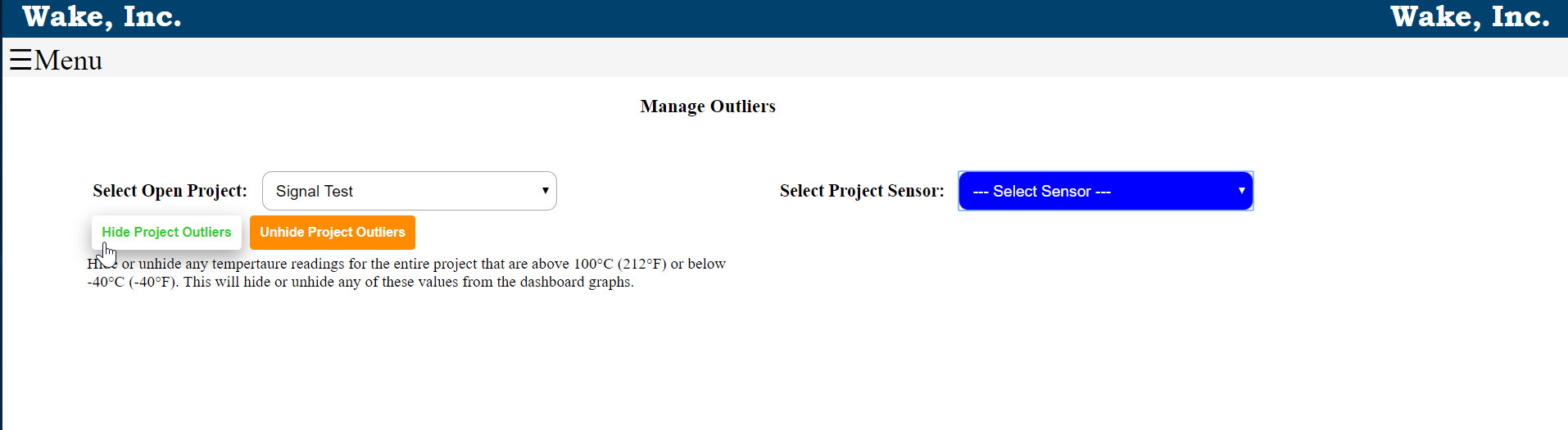

You have the option to select a Project and then Hide/Unhide all Outliers for all sensors in the project:

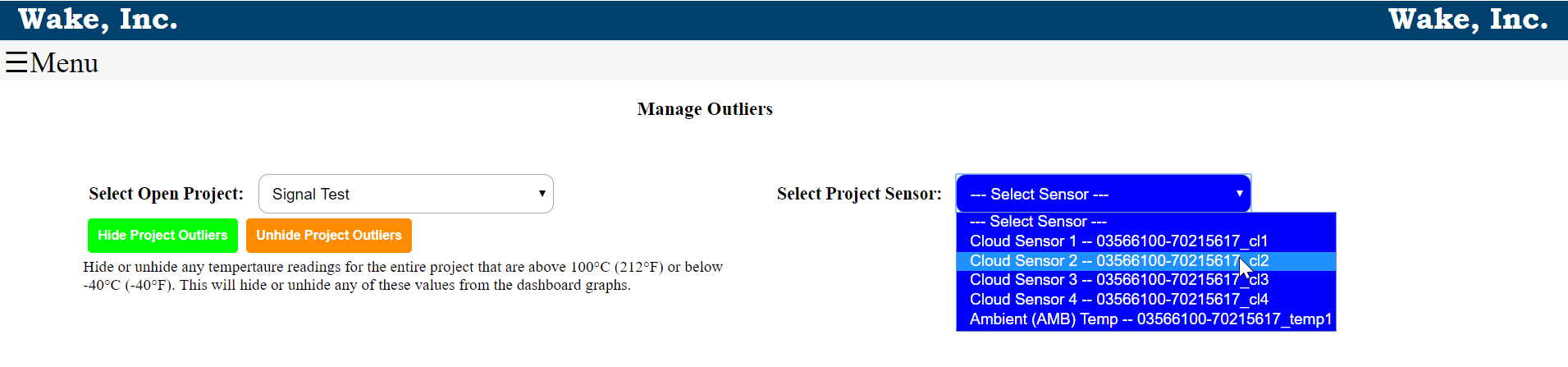

You can also select specific sensors in the project to Hide/Unhide completely from the project.  It is recommended that you delete a sensor that you will not be using in a project using the HardTrack Desktop app.



Suppressing these outliers will allow your project charts to display with more meaningful information.  However, the intention of the Manage Outlier feature is not to hide information from Project Owners that need to be aware of problems in a specific concrete pour, but rather to allow suppression of an odd outlier or a group of outliers that appear while/until a backup sensor is attached to your Cloud Sensor device that may have inadvertently been broken at the job site.
