How to set up Age-based Stepped Temperature to plot on Excel Project Temperature Report Chart

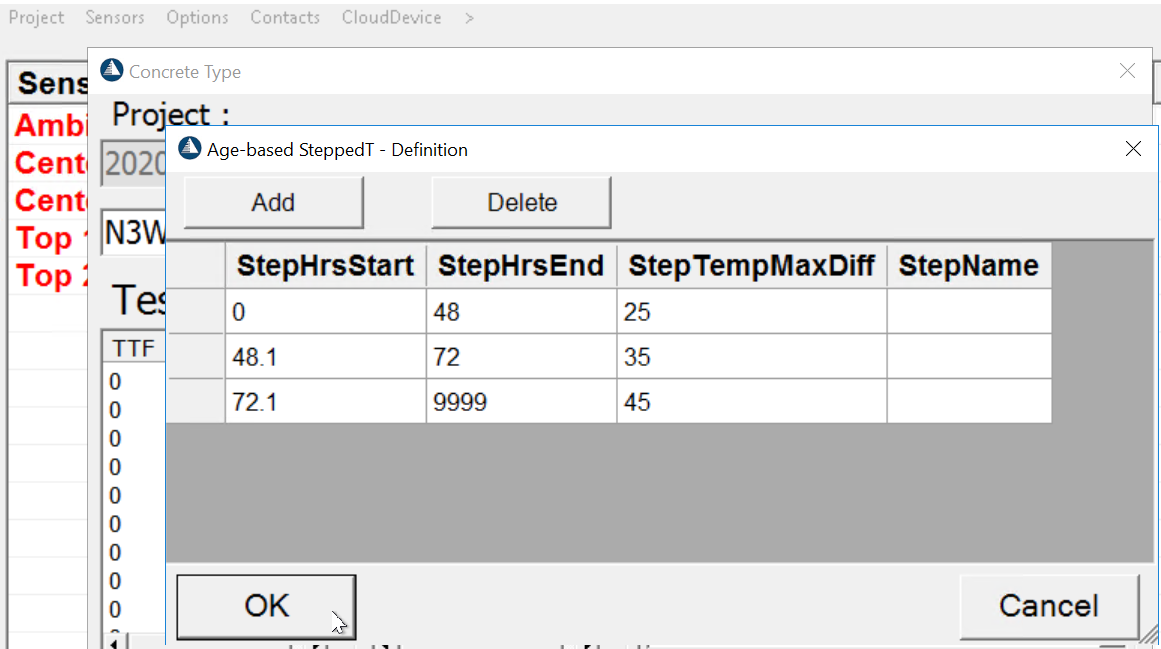

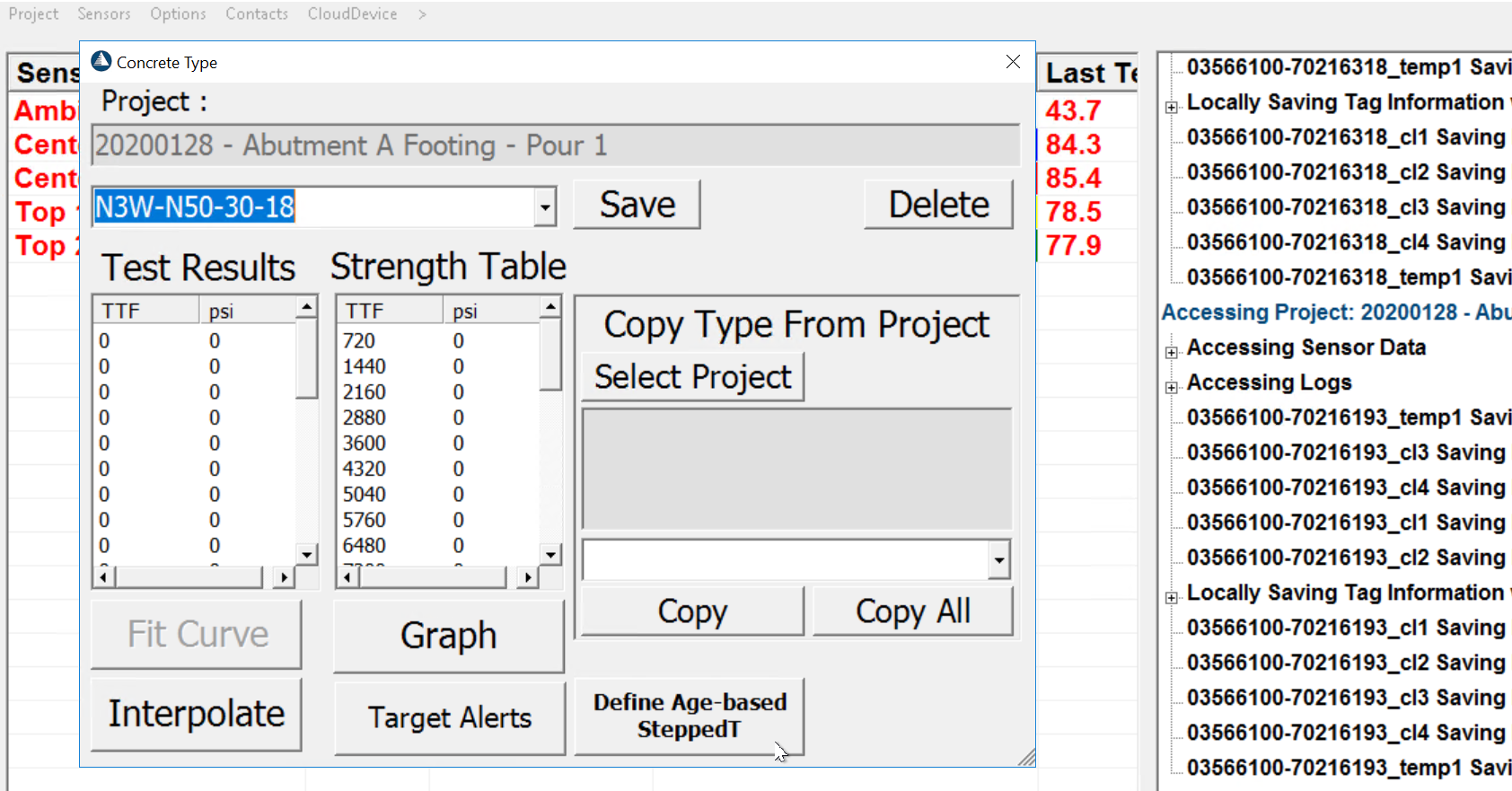

To set up the Age-based Stepped Temperature to plot on the Excel, Project Temperature Report, you may access the function to define the age-based steps from the Concrete Type form or the Target Alerts form:

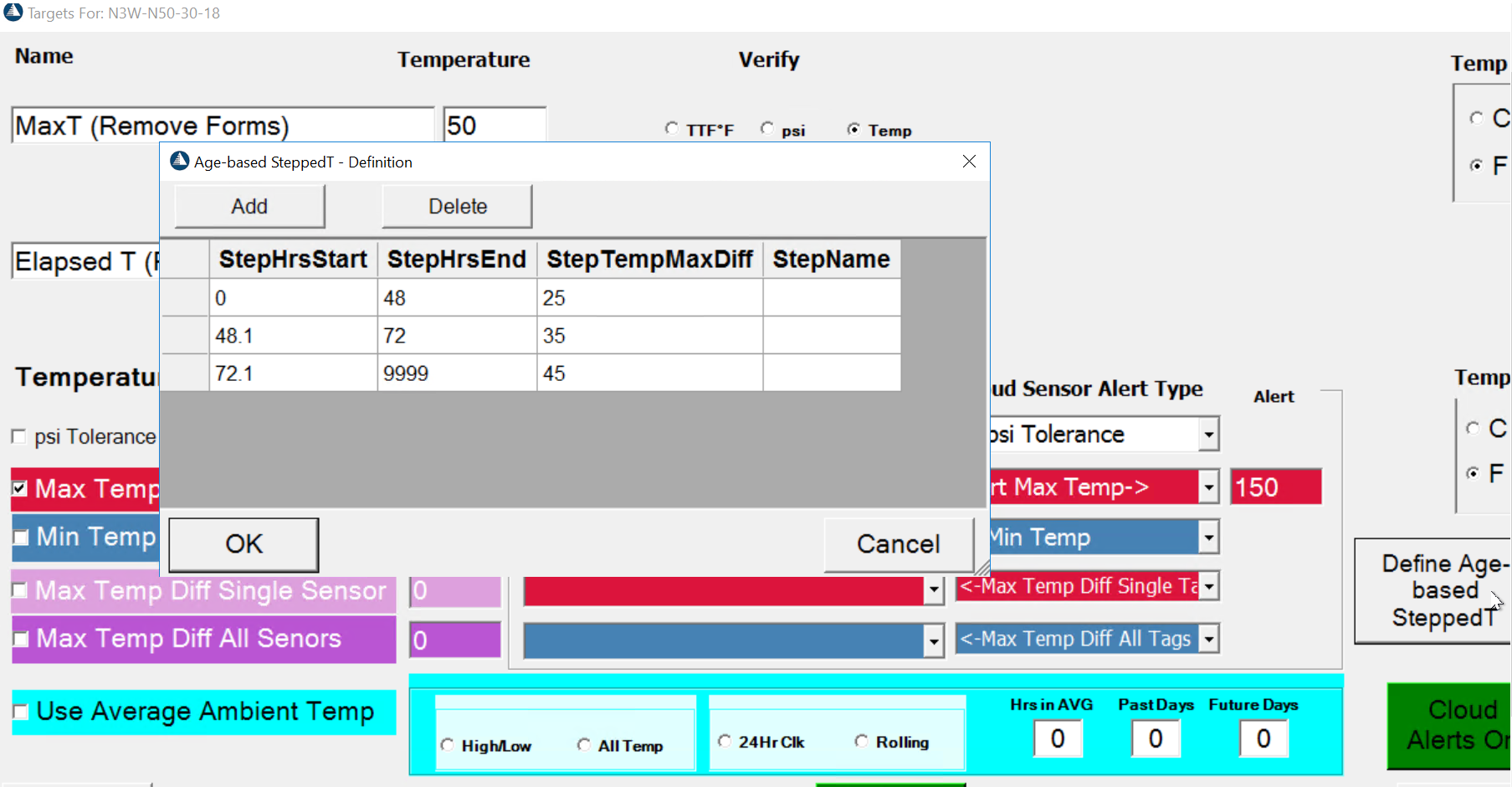

Or from the Target Alerts form:

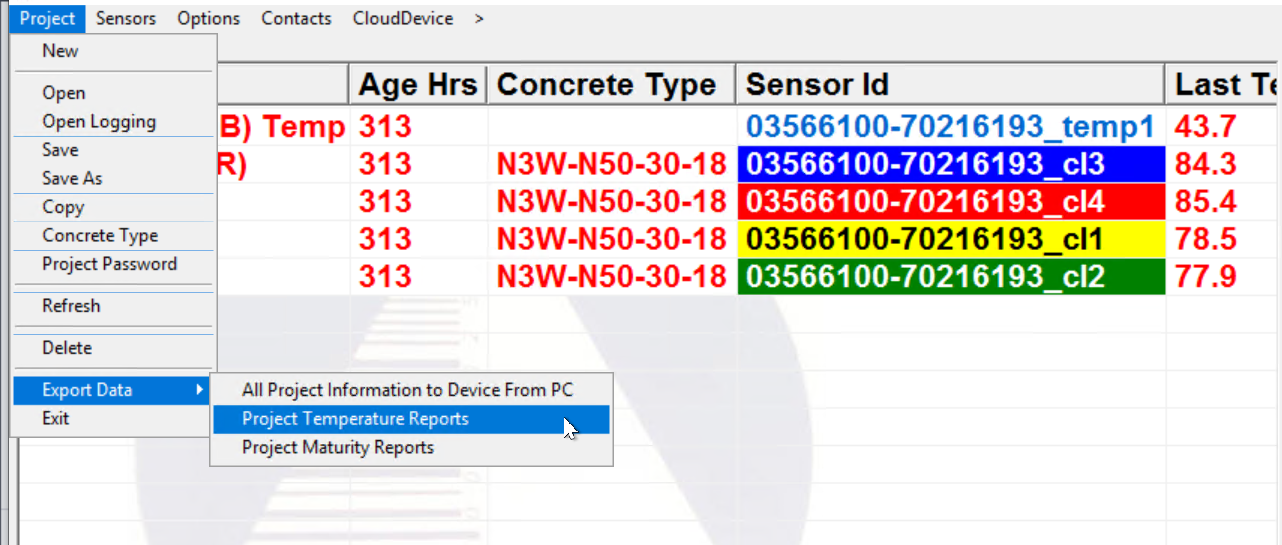

When generating the Excel, Project Temperature Report, select the Age-based Stepped T option.
If you would like HardTrack to Alert you regarding Age-based Stepped Temperature differences, between your sensors, please follow these instructions to set this up HardTrack Desktop:
