HTC Gateway - How to Combine 2 or more Projects
1) Verify or Add all of the sensors that you want in your combined project into the project are are going to keep.
2) Make sure that the Pour Date & Time is correct on all of the sensors.
3) With the project open that you are going to keep, click on Sensors, Logging, Restart All --OR-- single click on the sensors that you are moving to the combined project and click on Sensors, Logging, Restart
- This process will ask if you want to move the data stream away from the other project(s) that are logging temperature data for the sensors. Please click "Yes" to these question(s).
This is an example, project D P is the project we would like to keep and combine the sensors and data from project D
1) This is project D P with Sensors 947, 105, and 104. We verified the Pour Date & Time and we have all of the sensors that we want in the final combined project: D P:

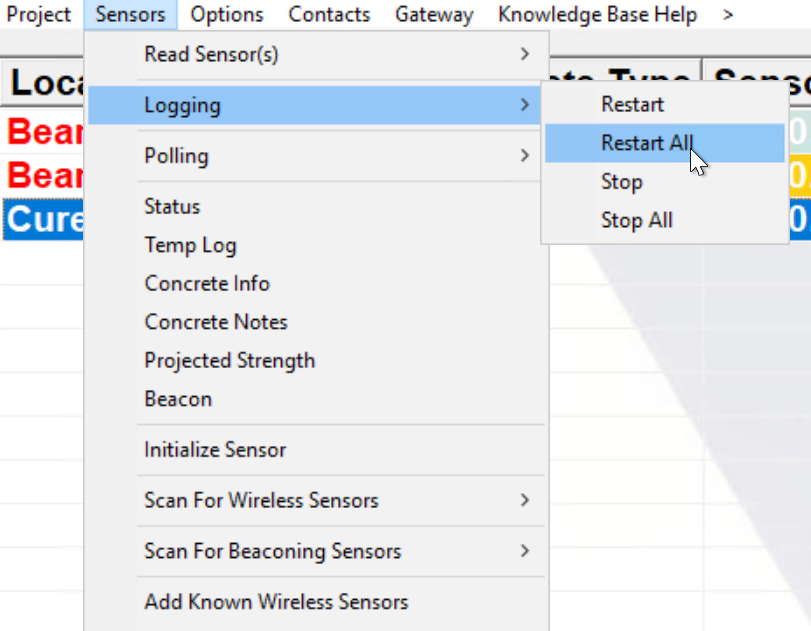

2) Single click on the sensors that you are moving to this project and click on Sensors, Logging, Restart --OR-- Click on Sensors, Logging, Restart All

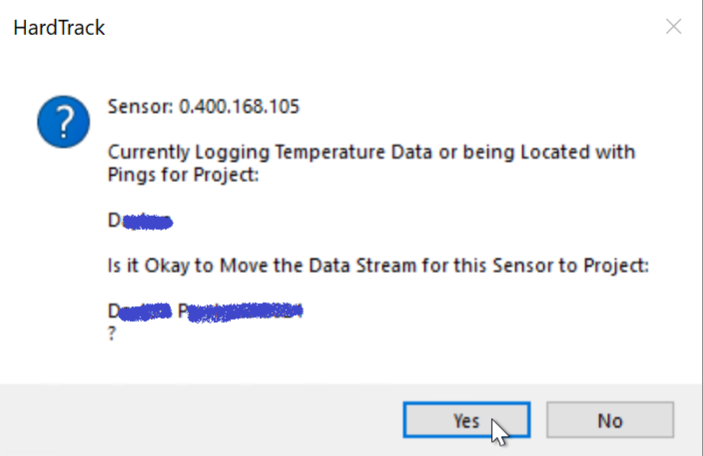

You will be asked if you would like to move the data stream for the sensor that are currently logging on other projects. Please click "Yes", so that HardTrack will turn off logging on for the sensors in the other projects and move the data stream to the combined project that you are going to keep:
