Windows Mobile Device Center Installation

You will need Windows Administrative Authority to complete these tasks.

Starting with HardTrack Desktop version 5.1._02.31 or greater:

 After successfully installing HardTrack Desktop and applying any Updates to HardTrack Desktop,

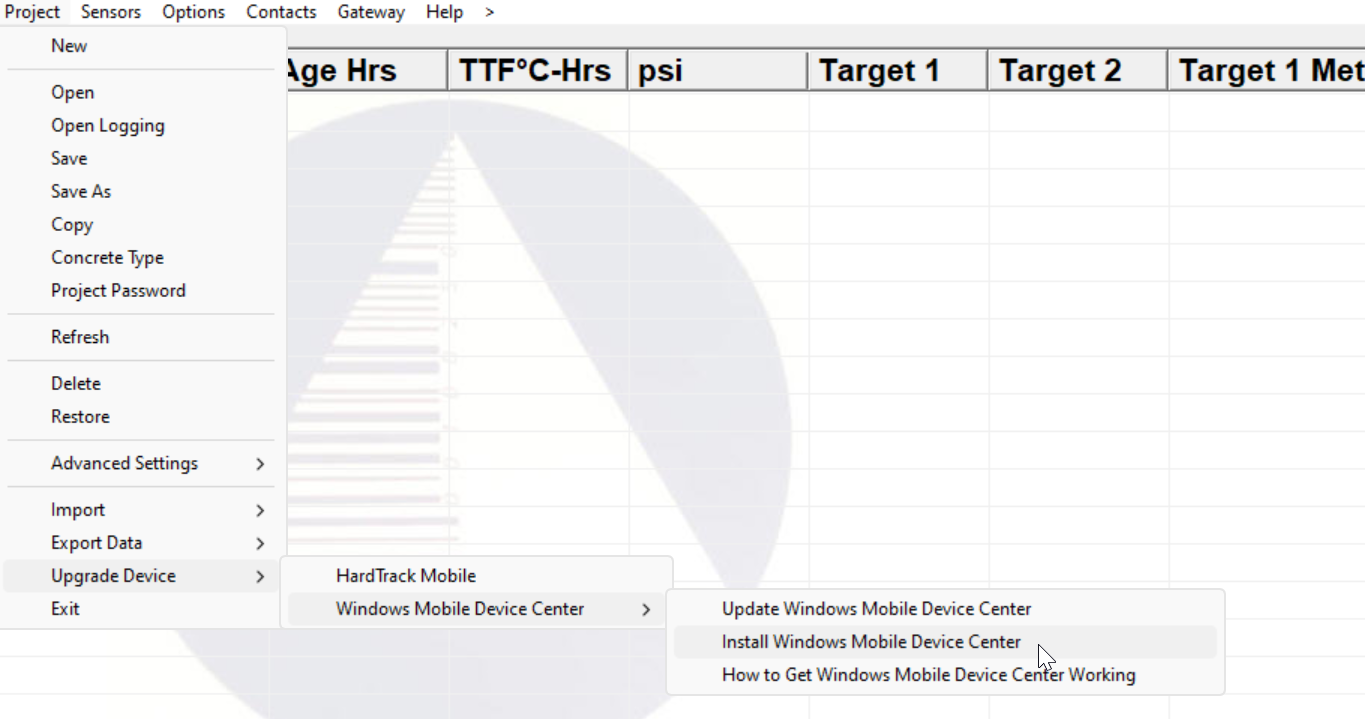

click on Project, Update Device, Windows Mobile Device Center, Install Windows Mobile Device Center

HardTrack will install the Windows Mobile Device Center

After Windows Mobile Device Center is installed, HardTrack Desktop will need to change the Windows Mobile Device Center Services so that they are setup to logon correctly.

Close HardTrack Desktop and run as the Administrative user,

then click on Project, Upgrade Device, Windows Mobile Device Center, Update Windows Mobile Device Center

On the PC, start the Windows Mobile Device Center manually by clicking on the Windows Icon to locate Windows Mobile Device Center or by searching from Windows for Windows Mobile Device Center.

It has an icon of a green circle.

If Windows Mobile Device Center loads properly, it will appear like this:

It will look like this if your handheld is not in the docking station and powered on with the USB cable attached between the docking station and the PC

If when you start Windows Mobile Device Center, it does not fully start but remains on the loading screen,

you will need to update (2) Windows Services to correct a problem.  This is typical right after you install the software and later if a Windows Update is applied that affects Windows Mobile Device Center.

HardTrack Desktop can usually fix this problem, by running it as the Administrative user and clicking on Project, Upgrade Device, Windows Mobile Device Center, Update Windows Mobile Device Center

If this does not work, you can manually fix the issue by following these instructions.

Here are the instructions to fix the Services in Windows so that Windows Mobile Device Center will load properly:

Click on Control Panel, the Administrative Tools

Click on Services:

Scroll down to Windows Mobile-2003-Based device connectivity and double click on it to open

Click on the Log On tab and Click Local System account, then Click OK

Please repeat the process with Windows Mobile-based device connectivity, it should be the next item in the list of Services:

After Clicking OK, if you receive a message that you need to Restart the Service for the change to take effect, with

Windows Mobile-based device connectivity highlighted using a single click, click Restart:
